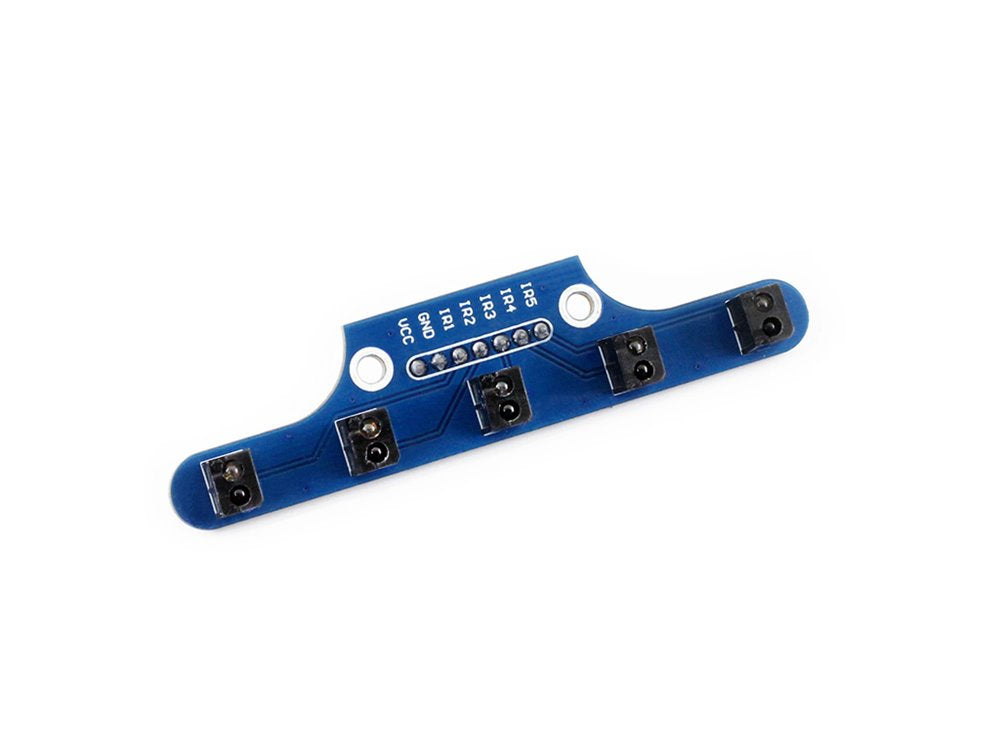

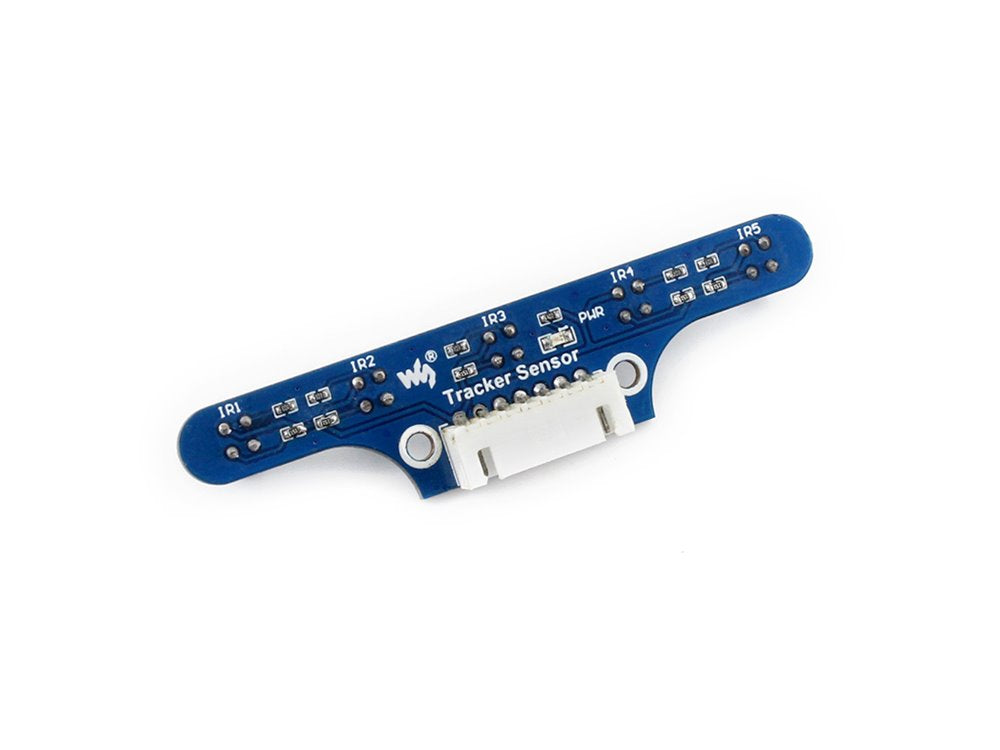

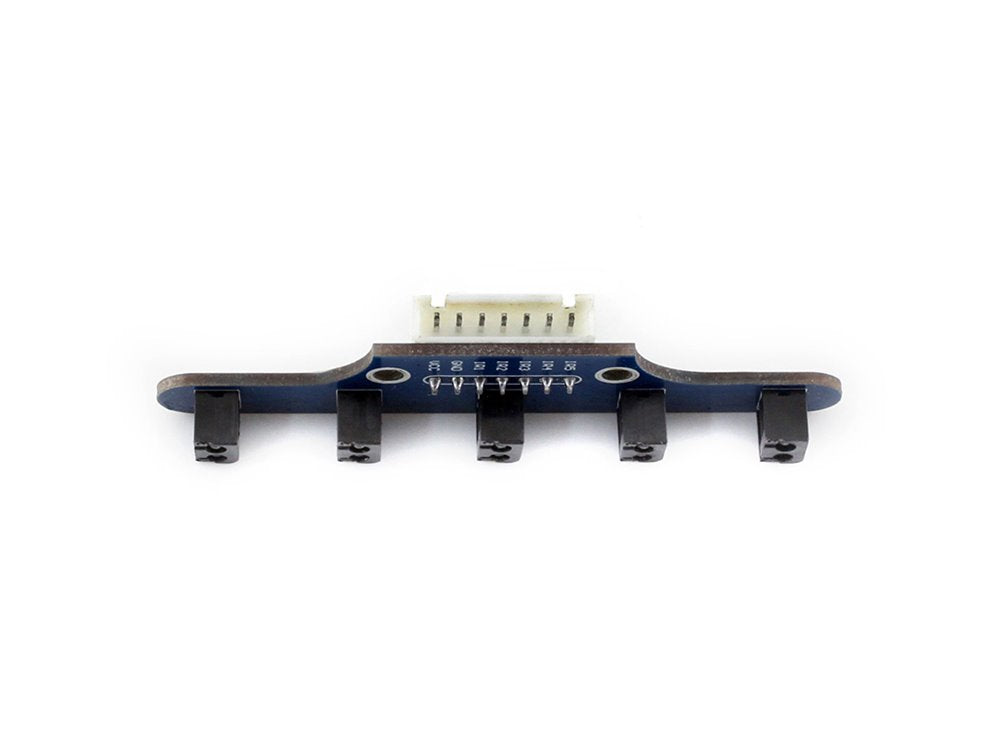

Introducing the ITR20001/T Infrared Tracking Sensor Module, designed for smart car and robot line tracking applications. This 5-channel sensor boasts a high sensitivity infrared detector, ensuring anti-jamming capabilities and stable performance.

With its high precision analog output, combined with a PID control algorithm, this sensor allows your robot to track lines with enhanced stability.

Key Specifications:

- Power: 3.3V to 5V

- Dimension: 78mm x 18mm

- Detector Spacing: 16mm

- Mounting Holes Size: 3mm

- Detection Range: 1cm to 5cm

Applications:

This sensor is ideal for robot line tracking tasks.

How to Use:

In conjunction with a MCU:

VCC ? 3.3V to 5V

GND ? GND

IR1 ? MCU.IO (ch1, analog output)

IR2 ? MCU.IO (ch2, analog output)

IR3 ? MCU.IO (ch3, analog output)
